SecuRail Horizontal / Inclined rail lifeline
EN795:2012 Type D
The anchoring device SecuRail is a horizontal rail lifeline system that ensures that the maximum load on the structure in the event of a fall does not exceed 7 kN. The components withstand forces with a minimum deformation.
- Advantages
- Aluminium anodized components which avoid electrolytic corrosion
- For 2 users between two adjacent brackets
- 6 types of trolleys for different applications
- Several fixing assemblies
- Ideally for fragile structures
- Absorbs the dilation / contraction
- It’s well suited when fall clearance is low
- Aesthetic solution
- Applications
- Maintenance of industrial roofs
- Maintenance of residential roofs
- Maintenance of architectural highlights roofs
- Maintenance of airport roofs
- Maintenance of commercial office and mall roofs
SecuRail Horizontal / Inclined rail lifeline
Horizontal on ground configuration

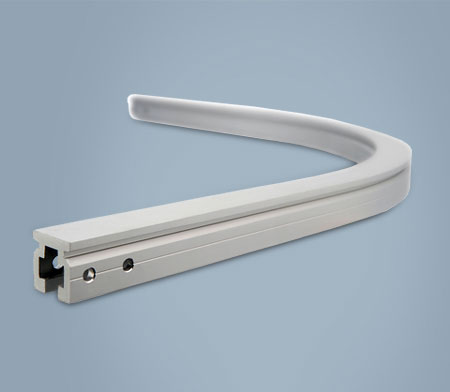

RHF004/RHF001
SecuRail alu 6060T6 anodised. Section can be straight or curved. Ground, wall and ceiling configuration are available. The SecuRail can be reinforced by a cross section profile
RHF016 /RHF017

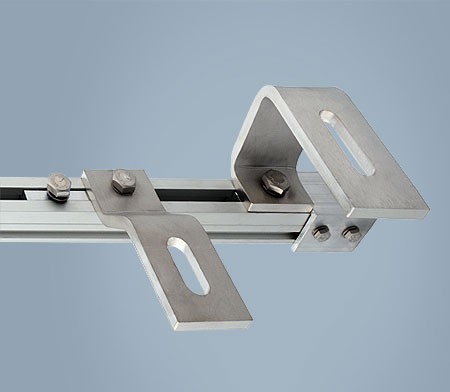

Common fixing assemblies on wall, ground and ceiling AISI304

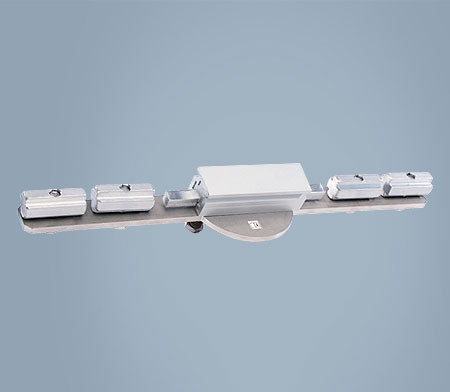

RHF009
Entry exit section alu 6060T6 anodized

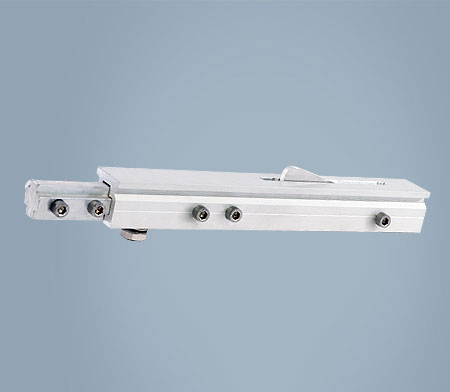

RHF007
Tilting end stop alu 6060T6 anodized
Trolleys
RHF011

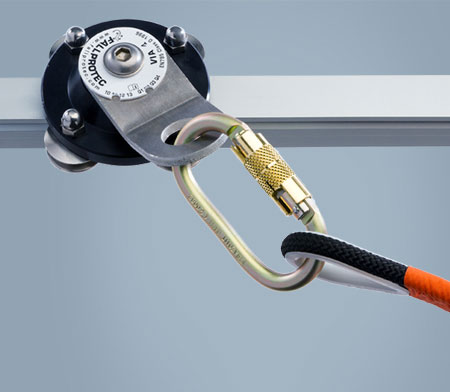

Trolley VIA1 for ground configuration. Made of aluminium, AISI304 and bush bearings. 1 per user
RHF012

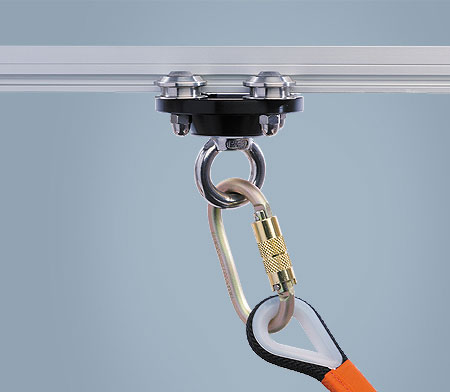

Trolley VIA2 for ceiling configuration. Made of aluminium, AISI304 and bush bearings. 1 per user
RHF040

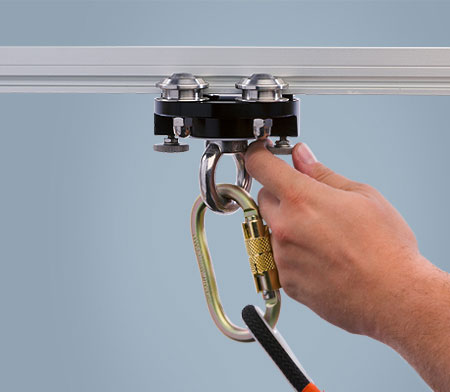

Trolley VIA7 with manual break. Made of aluminium, AISI304 and bush bearings. 1 per user
RHF015
Trolley VIA5 for wall configuration. Made of aluminium, AISI304 and bush bearings. 1 per user

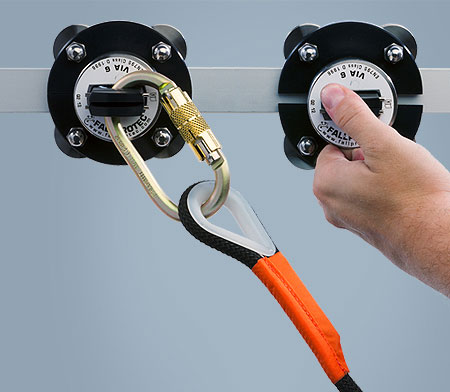

RHF028
Opening Trolley VIA6. Made of aluminium, AISI304 and bush bearings. 1 per user
RHF042

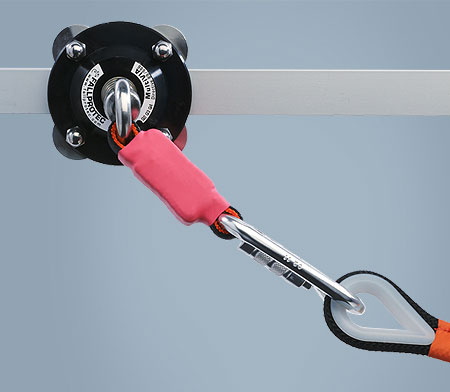

Trolley MULTIVIA with shock absorber. Made of aluminium, AISI304 and bush bearings. 1 per user
Videos

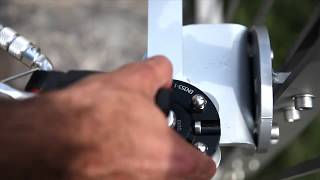

SecuRail huge installation in Marostica (Italy) by Somain Italia

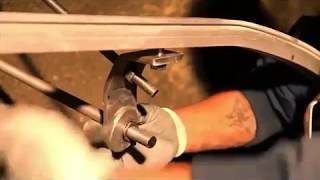

SecuRail - Museo il Mondo delle Miniere
Fallprotec Securail by Somain
Fallprotec products shown by Somain

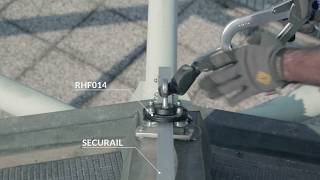

SecuRail horizontal and inclined lifeline for maintenance of Domes
Product Certifications
